RE200-Pro 20L Industrial Digital Rotary Evaporator

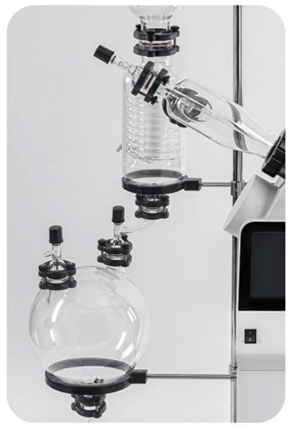

Two-section vertical triple coil condenser
Cat. No.
RE200-Pro 20L Digital Rotary Evaporator °ßÀû¿äû

ÃÖ´ë 20 L ¿ë·®ÀÇ evaporating flask ¸¦ ÀåÂøÇÒ ¼ö ÀÖ´Â »ý»ê¿ë ¸ðµ¨


´ëÇü LCD µð½ºÇ÷¹ÀÌ·Î ´ÙÀ½ ³»¿ë display
- °¡¿­ ¿Âµµ
- ȸÀü ¼Óµµ
- ȸÀü ¹æÇâ (Á¤¹æÇâ, ¿ª¹æÇâ)
- ŸÀÌ¸Ó Á¤º¸ È®ÀÎ
¿øŬ¸¯ ÀÚµ¿ ¸ðÅÍ ¸®ÇÁÆà (stroke: 180 mm) À¸·Î ºÎµå·´°í Á¶¿ëÇÑ ±¸µ¿
ÀÎÅ͹ú ±â´ÉÀ¸·Î Á¤¹æÇâ, ¿ª¹æÇâ ¸ðµç ȸÀü ¹æÇâ¿¡¼­ ȸÀü ½Ã Àá½Ã ÁßÁöÇÏ¿© È¿°úÀûÀÎ °ÇÁ¶ °¡´É
ÀÌÁßÃæ À¯¸® Äܵ§¼­ ÀåÂøÀ¸·Î ³ôÀº ½Ã·á ȸ¼öÀ² ±¸Çö
ƯÇã ¹ÞÀº PTFE ´õºí ¾Á¸µÀ¸·Î ÈǸ¢ÇÑ ¹ÐºÀ·Â
½Ã½ºÅÛ Áø°ø ¹× ¿ë¸Å Áõ·ù¸¦ ¼Õ»ó½ÃÅ°Áö ¾Ê°í ¿¬¼Ó ¼öÁýÀ» À§ÇÑ ½ºÀ§Äª ¹ëºê
»ç¿ëÀÚ ¾ÈÀü ÀåÄ¡
- Motor over-current protection, Residual Current Device
- Lifting overload protection, Boil-dry protection
- Over-temperature protection
ȸÀü ¼Óµµ : 10 ~ 150 rpm
ÃÖ°í °¡¿­ ¿Âµµ : 180 ¡É
¿Âµµ Á¤È®µµ : ¡¾1 ¡É (water), ¡¾3 ¡É (oil)
Evaporation capacity : Max. 4.0 L/h (water vapor volume)
Ultimate vacuum : Less 2.6 hpa
Sample flask : Round flask 20 L
Sample flask : Round flask 20 L
Receiving flask : Round flask 10 L with drain valve
Heating bath size : ¥õ450 ¡¿ 240 mm
Takeover caliberation
- Cooling/suction nozzle outer diameter 16 mm
- Vacuum pump nozzle outer diameter 16 mm


Switching valve design
Heating bath



Specifications
Temperature range Room temp. ~180¡É, (both water and oil)
Control Accuracy Water: ¡¾1¡É,   Oil: ¡¾3¡É
Rotation Speed 10 ~ 150 rpm
Evaporation capacity Max.4.0L/h (water vapor volume)
Ultimate vacuum Less 2.6hpa
Temperature control method Micro processer PID control
Display LCD (temperature/speed/clockwise and Anti-clockwise/time)
Stroke Displacement Automatic 180mm
Safety features - Motor over-current protection
- Residual Current Device
- lifting overload protection
- Boil-dry protection
- over-temperature protection
Sample flask Round flask 20L
Receiving flask Round flask 10L with drain valve
Condenser Two-section vertical triple serpentine condenser, cooling surface 1.2m©÷
Heating bath size ¨ª 450 ¡¿ 240 mm
Takeover caliber - Cooling/suction nozzle outer diameter 16mm
- Vacuum pump nozzle outer diameter 16mm
Dimension[D¡¿W¡¿H] 1160mm ¡¿ 600mm ¡¿ 1860mm
Power supply - 220V / 4600W / 50/60Hz
- 380V / 6000W / 50/60Hz
