| Method |
|
Vacuum type, propellerless, rotation and revolution mixing method |
| |
| Range of operation time |
|
From 00 minutes 00 seconds to 30 minutes 00 seconds
(The total operation time can be set at maximum 30 minutes in units of 1 second) |
| |
| Revolution speed |
|
Maximum 2000 rpm (0 rpm and range from 200 to 2000 rpm in units of 10 rpm) |
| |
| Rotation speed |
|
Maximum 1000 rpm (automatically set to be the half of the revolution speed) |
| |
| Number of memories |
|
20 memories (five steps can be registered in each) |
| |
| Container |
|
300 ml and 150 ml, made of HDPE |
| |
| Maximum & minimum quantity processed |
|
- Atmospheric pressure :
* When using 300 ml container: 250 ml / 310 g
* When using 150 ml container: 120 ml / 310 g
- Vacuum operation :
* When using 300 ml container: 200 ml / 310 g
* When using 150 ml container: 100 ml / 310 g |
| |
| Vacuum chamber |
|
Rotary part vacuum chamber system |
| |
| Power supply |
|
- Voltage : Single-phase AC 100 V ± 10%, 50 kHz / 60 kHz
- Power consumption :
* During standby : about 50 VA
* During operation : Maximum 1200 VA (except at startup) |
| |
| Operation environment |
|
- 10 to 35°C, 35 to 85% RH (no condensation)
- Altitude lower than 2000 m |
| |
| Main body dimensions (H x W x D) |
|
450 mm × 555 mm × 645 mm |
| |
| Body weight |
|
About 90 kg |
| |
| Switch / display unit |
|

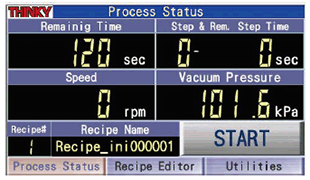

Touch panel (4.3 inches) |
| |
| Communication function (RS232C) |
|
Data collection function (Traceability function)
Operation start and stop, recipe editing and saving, using an external terminal |
| |
| Others |
|
Real-time display of rpm during operation, function of setting recipe name |
| |
