■ Yeast Cell Disruption
리스트돌아가기

Industry : Biopharmaceutical
Product : Yeast Cell
Test Objective : Obtain 90% cell disruption of yeast cells
Processor : M-110EH     (Microfluidizer High Shear Processor 장비보기)
Chambers : - Interaction Chamber (downstream) H10Z
- Auxiliary processing Module (upstream) H30Z
Number of passes : 5
Shear per pass : 5,780,000 sec -1
Process pressure : 25,000 psi
Summary of results : Achieved greater than 90% cell disruption after 5 passes using the M-110EH Microfluidizer materials processor
(pdf 화일 다운로드)

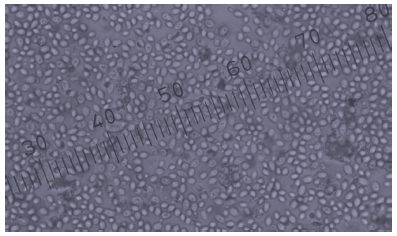

Before Processing (Magnification 400 X, 1 division - 2.5 um)

5 Passes (Magnification 400 X, 1 division - 2.5 um)
